Custom Auto Lock Bottom Boxes: Precision Base Packaging for Retail & Bulk Orders

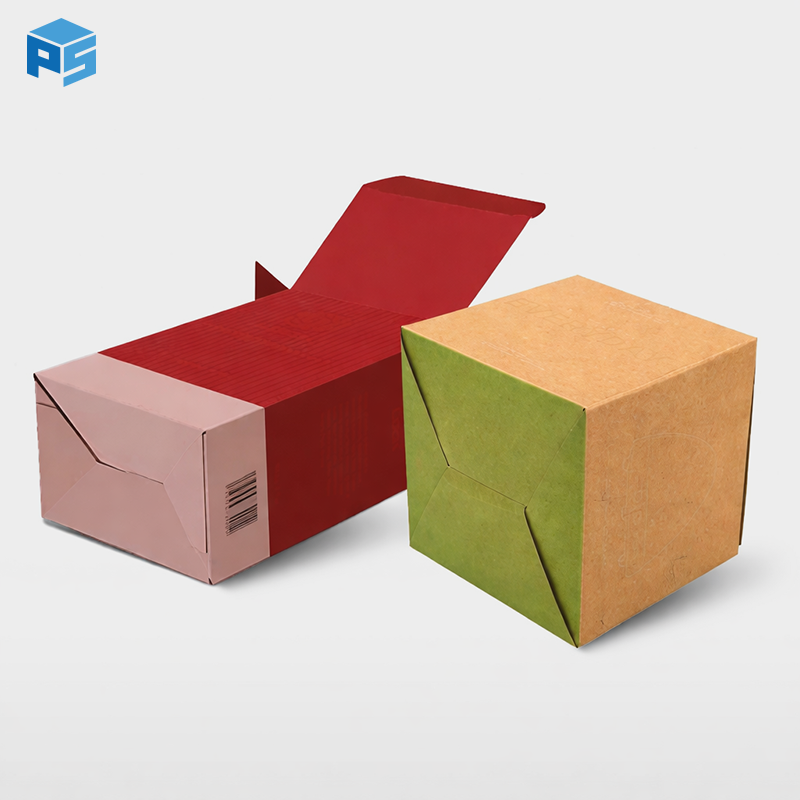

An auto lock bottom box, also known as a crash lock or snap lock bottom box, uses a pre-glued base panel that snaps firmly into position the instant the sides expand outward. The bottom snaps into a rigid, load-bearing configuration in one motion. No manual folding. There is no tuck-in flap. No tape.

At Packaging Ship, we manufacture custom auto lock bottom boxes for food brands, retail product companies, cosmetic and beauty brands, pharmaceutical packagers, e-commerce sellers, and any business that assembles folding cartons at volume on a production line or fulfillment bench. The auto lock button is not a premium feature. It is an operational necessity at any production volume where assembly time, base integrity, and load consistency all matter simultaneously.

Why Standard Tuck Bottoms Fail at Volume

A standard tuck-end box has four interlocking flaps at the base. The assembler folds them in sequence and tucks the final flap to lock the structure. This works at low volume. At production volume, it creates three problems.

1. Speed failure. Each standard tuck bottom requires between 5 and 12 seconds of manual assembly time. At 500 units per hour, that is 41 to 100 minutes of assembly labor consumed solely by base folding. An auto lock bottom collapses to under 2 seconds per box, and the base locks in one push-out motion.
2. Consistency failure. A manual tuck bottom is assembled differently by different operators. Flap depth varies. Tuck tension varies. Consequently, a percentage of tuck-bottom boxes ship with bases that never fully engage, and fail under product load. Auto lock bases engage identically every time because manufacturing fixes the pre-glued panel geometry at production, removing assembly as a variable entirely.
3. Load failure. A correctly assembled tuck-end base distributes product weight across four interlocking flaps. An incorrectly assembled one distributes weight unevenly across however many flaps the assembler fully engaged. Under transit pressure, unevenly loaded tuck bases collapse. Auto lock bases are load-rated from the moment they lock because the pre-glued panel creates a continuous load path across the entire base footprint.

Load-First Spec Framework: Built Around What Your Box Carries

The correct auto lock bottom box specification starts with what goes inside, specifically, the product’s weight and the number of units stacked per pallet or shipper.

• For lightweight products (under 500g cosmetics, small accessories, pharmaceutical sachets): SBS coated cardboard in 14pt to 18pt. Single-wall auto lock base. Full-color CMYK print. Matte or gloss lamination. Standard tuck-top or straight tuck top for consumer opening.
• For medium-weight products (500g to 2kg food products, supplements, personal care items): 18pt to 24pt SBS or duplex board. Reinforced auto lock base with deeper pre-glued panel engagement. Full-color CMYK with PMS-matched brand colors. Matte lamination. Retail-ready format for shelf placement.
• For heavier products (2kg to 5kg bottled goods, multi-unit sets, hardware products): 24pt SBS or E-flute corrugated composite. Double-wall auto lock base for maximum load distribution. High-density glue specification on the base panel. Corrugated formats available for products requiring additional structural support.
• Across all weight classes: Box styles: straight tuck top with auto lock bottom · reverse tuck top with auto lock bottom · open-top auto lock tray. Print: CMYK full-color · PMS Pantone-matched · offset for volume runs · digital for short-run SKU testing. Finishes: matte · gloss · soft-touch · aqueous coating · spot UV. Special treatments: foil stamping · embossing · debossing. Sizing: fully custom. Turnaround: 8–10 business days production · 10–15 business days delivery

Which Industries Use Auto Lock Bottom Boxes: and Why

1. Food and beverage retail uses auto lock bottom boxes for cereals, snack formats, tea and coffee, confectionery, and packaged food SKUs. The production line speed benefit is immediate auto lock bases reduce line bottlenecks at the assembly station.
2. Cosmetic and beauty retail uses auto lock bottom boxes for skincare, makeup, and personal care product lines, where consistent base integrity across high-volume production runs determines whether products arrive undamaged in DTC and retail distribution.
3. Pharmaceutical and nutraceutical manufacturers choose auto lock bottom boxes for supplement cartons, OTC product packaging, and health retail formats, where every unit in a production run must meet consistent base engagement as a quality control standard.
4. E-commerce brands shipping products directly to consumers use auto lock bottom boxes because the base holds under the compression and impact of courier transit, where a failed tuck-bottom base means a damaged product and a customer service issue.

Ordering as Business Continuity

Auto lock bottom boxes are almost always reordered products. A food brand does not buy auto-lock cartons once. They restock on a production cycle. The box specification, base glue pattern, board weight, print registration, and finish must be identical across every production run.

At Packaging Ship, your auto lock bottom box specification is held after the first approved run. Board grade, glue specification, and print layout are documented and replicated exactly on every reorder. There are No MOQs. An emerging food brand testing a new SKU format and a retail chain restocking 50,000 units per quarter go through the same direct manufacturing process. Production is 8–10 business days. Delivery is within 10–15 business days total.

Tell us your product weight, your count, and your distribution channel a free quote within 24 hours.
